How to Optimise Your Wall Mounted Air Conditioner for Maximum Efficiency

Getting the Most From Your Wall Mounted Air Conditioner

A wall mounted air conditioner that is poorly set up can cost you hundreds of dollars a year in wasted energy without ever keeping your home comfortable. Most Australian households are leaving real efficiency gains on the table, not through any major fault, but through small oversights in how their unit is sized, positioned, maintained and controlled.

The good news is that the fixes are largely practical and low-cost. This article covers four areas where you can make a genuine difference: getting placement and sizing right from the start, dialling in your settings and using smart controls, keeping up with maintenance and cleaning, and recognising when an ageing unit is costing more to run than a replacement would.

Placement, Sizing and Installation: The Foundation of Efficiency

The physical setup of a wall mounted split system air conditioners determines its baseline efficiency before you ever touch the remote. A unit that is the wrong size for the room, mounted in the wrong spot, or installed with a poorly positioned outdoor unit will never perform at its rated efficiency, regardless of how well you manage the settings. Getting these fundamentals right is the single highest-leverage thing you can do.

Choosing the Right Capacity for Your Room

Capacity matching is the most commonly misunderstood part of buying an air conditioner. An undersized unit runs at 100% load continuously trying to reach the set temperature, consuming far more energy than a correctly sized inverter unit ticking along at 60-70% load. An oversized unit short-cycles, switching on and off repeatedly, which not only wastes energy but also fails to remove humidity from the air, leaving the room feeling clammy even when it is technically cool.

As a practical guide, use these rough benchmarks for Australian homes with standard ceiling heights:

Room Type	Approximate Size	Recommended Capacity
Small bedroom	10-20 sqm	2.0-2.5kW
Medium bedroom or study	20-30 sqm	2.5-3.5kW
Medium living area	30-45 sqm	3.5-5.0kW
Large open-plan living	45-65 sqm	5.0-7.1kW

For a small bedroom or home office in the 20-30 sqm range, the Daikin Cora 2.5kW Inverter Split System (FTXV25WVMA) at $1,054 is a well-matched choice. Step up to a medium living area of 40-60 sqm and the Daikin Cora 5kW Inverter Split System (FTXV50WVMA) at $1,697 covers the space without over-speccing. Keep in mind that rooms with poor insulation, high ceilings, large west-facing windows or significant heat loads from cooking may need to size up one bracket.

Where to Mount the Indoor Unit

Mounting height and wall position have a direct impact on how efficiently the unit distributes conditioned air. The ideal mounting height for the indoor unit is between 2.1 and 2.4 metres from the floor. Too low and the airflow is obstructed by furniture. Too high and the unit struggles to draw in the warmest air near the ceiling during heating mode.

Choose an interior wall where possible, away from walls that receive direct afternoon sun. A sun-baked exterior wall transfers heat into the room and forces the unit to work harder. Keep the unit away from kitchen heat sources such as ovens and rangehoods, and avoid positioning it directly above a television or entertainment unit. These heat-generating appliances can fool the thermostat sensor into reading the room as warmer than it actually is, causing the unit to overcool and run longer than necessary.

Poor placement choices like these can add 10-15% to your running costs over a full season. It is a small detail at installation time that compounds into a meaningful expense across the life of the unit.

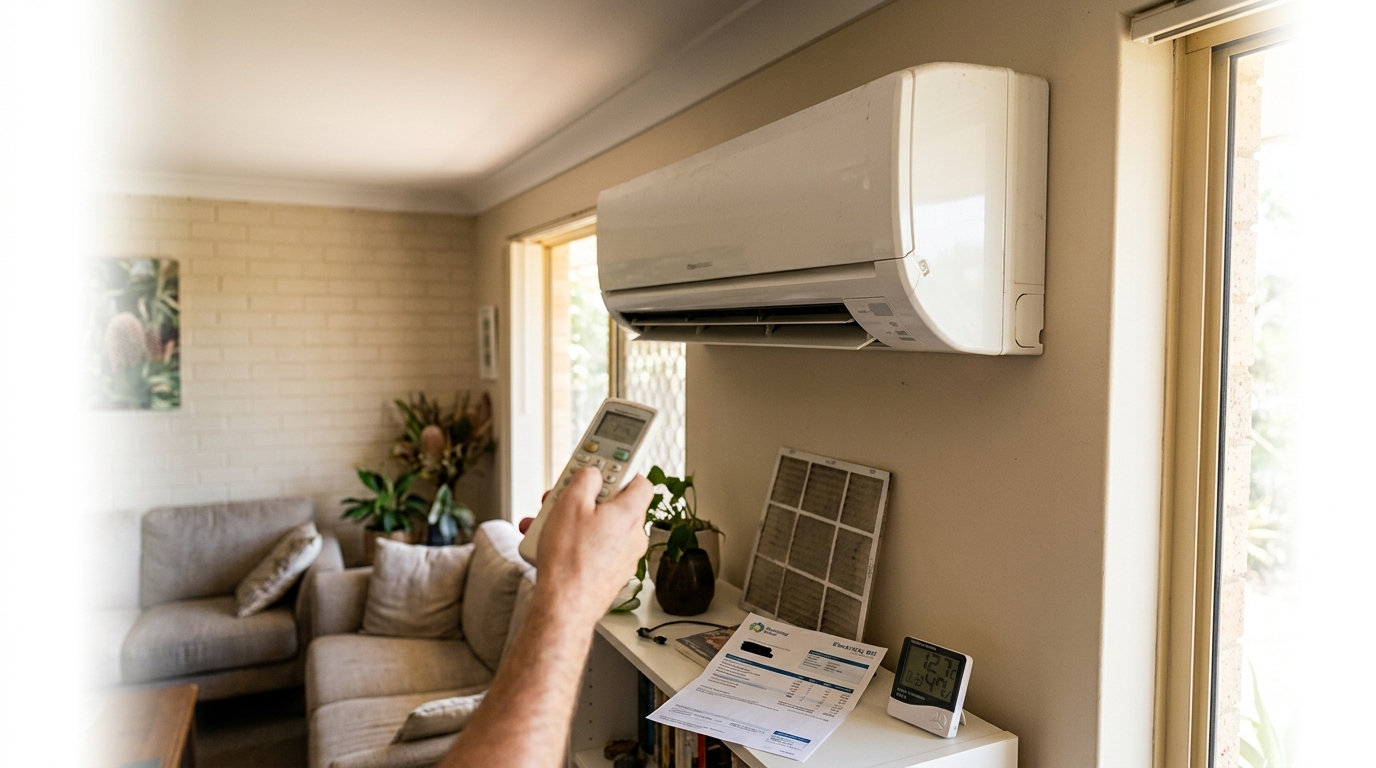

Smart Settings and Controls That Cut Running Costs

The right operational settings can reduce a wall mounted air conditioner's running costs by 20-30% without any hardware changes. Most households either leave the thermostat at an extreme temperature, run the unit all day on a fixed schedule or ignore the specialised modes entirely. Adjusting just a few settings makes a measurable difference on your power bill.

Thermostat Temperature: The Biggest Lever You Have

The single most effective thing you can do is set your thermostat to the right temperature and leave it there. For cooling, 24-26°C is the sweet spot. For heating, 18-20°C is the target. Every degree you move outside these ranges adds roughly 5-10% to your energy consumption, so a household cooling at 20°C instead of 24°C is paying up to 20% more for the same result.

A common mistake is setting the unit to 16°C to cool the room faster. Inverter units do not work that way. They ramp up to full capacity regardless of the set temperature and then modulate down once the room approaches the target. Setting 16°C instead of 24°C does not speed up cooling. It just means the unit overshoots and keeps running long after the room is comfortable. Set the temperature you actually want and let the inverter do its job.

Timers, Sleep Mode and WiFi Controls

Programmable timers are one of the most underused features on modern split systems. Setting the unit to switch off 30 minutes after you typically fall asleep, and back on 20 minutes before you wake up, eliminates hours of unnecessary runtime every day. Over a full summer, that adds up to a significant reduction in running costs.

Sleep Mode takes this further overnight. Most units in Sleep Mode gradually ease the set temperature by one to two degrees over the first hour and reduce fan speed to its quietest setting. The result is a 10-20% reduction in overnight energy use compared to running the unit at a fixed setting, with the added benefit of a quieter bedroom.

For households that want more control, WiFi-enabled split systems allow you to monitor energy use, adjust settings and build smart schedules directly from your phone. The Mitsubishi Electric AP Series 2.5kW (MSZAP25VGKD) at $1,040 includes built-in WiFi as standard, making it a practical choice for anyone who wants app-based scheduling without buying a separate smart controller. On humid days, switching to Dry or Dehumidify mode rather than full cooling removes moisture from the air at a fraction of the energy cost, which is often all that is needed to feel comfortable.

Maintenance and Cleaning: Keeping Efficiency High Year-Round

A neglected wall mounted air conditioner can lose 15-25% of its rated efficiency over time, purely through the build-up of dust, debris and biological growth on the filters and coils. Regular maintenance is the lowest-cost way to protect that efficiency and extend the working life of the unit. Most of the routine tasks are straightforward DIY work that takes under 30 minutes.

DIY Maintenance Routine: Step-by-Step

Follow this routine during any period of heavy use, such as summer cooling or winter heating seasons:

1. Turn off the unit at the wall before any cleaning. Switch off at the isolator switch or circuit breaker, not just via the remote. This is a non-negotiable safety step before touching any part of the unit.
2. Remove and rinse the indoor filter under warm water every 4-6 weeks. Most indoor units have a front panel that lifts or slides open to reveal one or two mesh filters. Rinse them gently under a tap, working from the clean side through to the dirty side to push debris out rather than deeper in.
3. Allow the filter to dry fully before reinserting. A damp filter restricts airflow and can encourage mould growth inside the unit. Leave it in a well-ventilated spot for at least an hour before putting it back.
4. Wipe down the indoor unit casing and louvres with a damp cloth. Dust accumulates on the outer casing and the directional louvres. A quick wipe prevents that dust from being drawn back into the unit during the next cycle.
5. Check the outdoor unit for leaf litter, debris or overgrown vegetation. The outdoor unit needs clear airflow on all sides. Remove any leaves or debris from around the base and trim back any plants that have grown within 500mm of the unit.
6. Book a professional service annually. A licensed technician will check refrigerant levels, inspect the coil condition, clean the evaporator and condenser coils properly, and test electrical connections. This is not a DIY task and skipping it is the most common reason units underperform in their third and fourth year of operation.

Filter cleaning sprays and soft brushes designed for indoor units are available as air conditioning accessories, and they make the job quicker and more thorough than a cloth alone.

When to Call a Professional

Some symptoms go beyond what routine cleaning can fix, and attempting DIY repairs on refrigerant systems or electrical components is both dangerous and illegal without the appropriate licence. Call a licensed technician if you notice any of the following:

• Ice forming on the indoor unit or the refrigerant lines
• Unusual noises such as grinding, rattling or high-pitched squealing during operation
• A chemical or sweet smell near the indoor unit, which can indicate a refrigerant leak
• The unit running continuously without reaching the set temperature

These are not minor issues that resolve themselves. Ice on the indoor unit typically points to a blocked filter, low refrigerant or a failing fan motor. A unit that runs constantly without hitting the set temperature is often low on refrigerant or has a coil problem. Leaving these faults unaddressed accelerates wear on the compressor, which is the most expensive component in the system to replace. Book a technician promptly and the repair bill is almost always far smaller than the alternative.

When Optimising Is Not Enough: Upgrading to a More Efficient Unit

If your wall mounted air conditioner is more than 10-12 years old, optimisation can only take you so far. Units from that era typically carry energy star ratings well below what modern inverter technology delivers, and no amount of thermostat tweaking or filter cleaning will close that gap. A current inverter model can use 30-50% less electricity to produce the same heating or cooling output as an older fixed-speed or early-inverter unit.

A useful decision framework is the '$5,000 rule'. Add up the cost of any pending repairs and multiply your estimated annual running cost by the number of years you expect to keep the unit. If that total exceeds $5,000, replacement almost always makes more financial sense than continuing to maintain an ageing system. See the FAQ section below for a more detailed breakdown of how to apply this.

For a mid-range upgrade, the Fujitsu Lifestyle 5kW Inverter Split System (ASTG18KMTC) at $1,638 is a strong all-rounder. It covers medium living areas up to around 50 sqm, carries solid energy efficiency credentials and comes from a brand with a well-established service network across Australia. It is a practical replacement for any ageing 5kW unit that has started costing more to run than it should.

If you want a premium option with built-in WiFi and whisper-quiet operation, the Mitsubishi Electric LN Series 2.5kW Split System (MSZ-LN25VGV) at $1,901 is worth considering for bedrooms or studies. The LN Series is one of the quieter units on the market at low fan speeds, and the built-in WiFi means you get full app-based scheduling without needing a separate smart controller. Browse the full range of Mitsubishi Electric split systems to compare capacities and models across the LN lineup.

Ready to replace an underperforming unit? Browse our range of Daikin split systems for another leading option, with models spanning 2.5kW through to 9kW to suit every room size and budget.

Frequently Asked Questions

What is the most efficient temperature to set a wall mounted air conditioner?

For cooling, 24-26°C is the most efficient range for Australian homes. For heating, aim for 18-20°C. Every degree outside these ranges adds roughly 5-10% to your running costs, so a household cooling at 20°C instead of 24°C can be paying up to 20% more for the same comfort level.

How often should I service my wall mounted air conditioner?

Clean the indoor filters yourself every 4-6 weeks during periods of heavy use, and book a professional service once a year. An annual service covers refrigerant checks, coil cleaning and electrical inspections that are beyond DIY scope. Skipping professional servicing is the most common reason units lose efficiency in their third and fourth year of operation.

How do I know if my air conditioner needs replacing rather than repairing?

Apply the '$5,000 rule'. Add the cost of the current repair to your estimated annual running costs multiplied by the remaining years you plan to stay in the home. If that figure approaches or exceeds $5,000, a replacement unit will almost always deliver better value. Units older than 12 years with a history of refrigerant top-ups or compressor issues are strong candidates for replacement regardless of repair cost.

Does leaving a wall mounted air conditioner on all day save energy?

Generally, no. Leaving an inverter unit running all day at a moderate temperature can be more efficient than repeatedly switching it off and on in short bursts, but running it continuously through an empty house wastes energy. The most efficient approach is to use programmable timers or a WiFi app to run the unit only when the space is occupied or within 20-30 minutes of being occupied.
